Superwinch 09034SR EPi9.0S Series Master Winch |  | Brand: Superwinch
Category: Automotive Parts and Accessories
List Price: $1,432.00
Buy New: $799.00
as of 3/10/2010 09:06 EST details
You Save: $633.00 (44%)
New (2) from $799.00
Seller: Amazon.com
Rating:  2 reviews
Sales Rank: 2403
Media: Misc.
Shipping Weight (lbs): 82
Dimensions (in): 24 x 8 x 15
MPN: 09034SR
Model: 09034SR
UPC: 022705002776
EAN: 0022705002776
ASIN: B0016J9U00
Shipping: Eligible for FREE Super Saver Shipping
Availability: Usually ships in 24 hours
| |
| Features:
| • | Features a powerful, yet efficient 4.6 hp (3.4 kw) series wound motor with a 9,000 lb pull rating | | • | Includes an industry-best Limited Lifetime Warranty for defects in materials and workmanship, as well as a three-year warranty on the included S3 sealed submersible solenoid | | • | Utilizes 80-feet of high tensile yet ultra light 3/8-inch synthetic winch rope with a 10-foot rock guard sleeve, stainless thimble and heavy duty anodized aluminum hawse | | • | Automatic load holding braking (outside of drum), quiet, efficient, full metal 3-stage planetary gear box, and lift and turn freespooling clutch | | • | Includes a handheld rubber remote switch with a 15-foot extension for better and safer performance at whatever distance from the winch is required |
|
| Accessories:
|
| Similar Items:
| |
| Editorial Reviews:
Product Description
Powers Load IN and OUT | 10’ Rock GuardSleeve & Thimble | Auto Load Holding Brake | 3 Stage Planetary Gear Box | Lift & Turn Freespooling | 4.6 hp (3.4 kW) Wound Motor | S3 Sealed Submersible Solenoid | HD Removable, Clevis Pin, Latched Hook | Limited Lifetime Warranty Superwinch Epi Series Recovery Winch Model: EPi 9.0 SR - 12 Volt DC Electric Winch 9,000lb w/ Blue Anodozed Hawse, Pulley Block & 15' Hand Held Remote (3/8" x 80' Synthetic Rope)
Amazon.com Product Description
| The Superwinch EPi9.0S Series Master Winch is designed to be compact, dependable and suitable for 4x4s and similar vehicles as well as workshops, trailers and jobs around the house. Utilizing 80-feet of light weight, yet ultra-durable synthetic winch rope and a high-efficiency 4.6 hp motor featuring a 9,000 lb pull rating, a full metal three-stage planetary gear train, a lift and turn freespooling clutch, an S3 sealed submersible solenoid and wired remote operation, it is an ideal winching choice for both serious recreation and heavy-duty work situations alike. High Efficiency and Power with Reduced Overall Weight
The Superwinch EPi9.0S Series Master Winch is designed to provide both power and performance for 4x4s and other heavy vehicles through its blend of high efficiency drawing power and component parts that lighten the load your vehicle carries. Its 4.6 hp, 12-volt DC series wound motor easily attaches to, and is powered by, your primary car battery or an auxiliary installed battery (recommended in cases of heavy winch use). The motor features a 9,000 LB line pull rating, both load in and load out drum rotation for mechanized movement of winch rope, a full metal 3-stage planetary gear box and an accessible lift and turn freespooling clutch allowing users to quickly disengage the motor and manually draw out as much winch rope as needed.  Powerful, efficient and light weight.

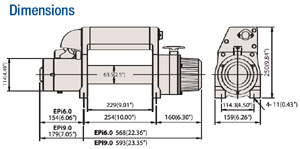

View larger. |  Dimensions to fit any mounting area.

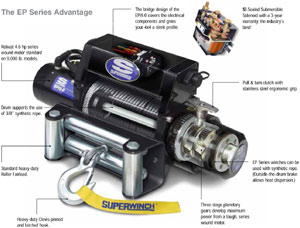

View larger. |  The EP Series features (specifics may vary).

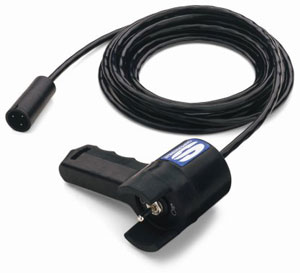

View larger. |  A 15-foot wired rubber remote for safety.
View larger. | The winch utilizes a distinct 80-foot length of high performance blue Dyneema 3/8-inch synthetic rope, with a 10-foot rock guard sleeve, providing strength and durability without compromising the overall weight of the unit. This tough, specially-made winch rope is metal-free and so will never rust in wet weather or shed painful splinters and is significantly lighter than comparable metal winch cable, reducing the overall weight of your winch by as much as 40 pounds. It connects easily to the clevis pin and hook via a stainless steel thimble and is protected from wear during angled pulls as it slides along the included heavy duty anodized aluminum hawse carrying the Superwinch seal. Important Safety Features
Safety is an important consideration with any piece of machinery. With this in mind the Superwinch EPi9.0S Series Master Winch features a wealth of valuable safety features. These include bi-directional automatic load holding and braking outside of drum to minimize the possibility of winch rope slippage in the event of power failure or surge, to provide quick stopping of the drum and minimize heat buildup in the drum; a sealed submersible solenoid to ensure safe, reliable, electromagnetic power in all weather conditions; and a rubberized remote switch with a 15-foot extension cable, allowing for safe distances between the user and winch in all situations. Standard Features: - Powers load in and out.
- 80 feet of 3/8" synthetic Dyneema rope with 10’ rock guard sleeve and stainless thimble.
- Gear ratio 156:1.
- Automatic load holding braking (outside of drum).
- Quiet, efficient, full metal 3-stage planetary gear box.
- Lift and turn freespooling clutch.
- Efficient 4.6 hp (3.4 kw) series wound motor.
- S3 sealed submersible solenoid with 3-Year warranty.
- Heavy duty removable, clevis pin, latched hook.
- Heavy duty anodized aluminum hawse.
- Rubber handheld remote with 15' cord.
- Limited lifetime warranty (industry’s best).
What's in the Box
1-09034SR EPi9.0S series master winch, 1-aluminum hawse fairlead, 1-80' length of Dyneema synthetic winch rope with stainless steel winch rope thimble, 1-heavy duty removable clevis pin with latched hook, 1-15' rubber handheld remote, 1-users manual. Specifications: | Rated line pull | 9,000 LB (4,082 kg) bottom layer | | Motor | 4.6 hp (3.4kW) series wound, 12V DC | | Gearing | 3-stage planetary | | Gear ratio | 156:1 | | Braking | Automatic 100% load holding | | Freespool clutch | Lift and turn | | Synthetic rope | 3/8" (9.5mm) x 80’ (24.4m) Dyneema | | Dimensions | 23.35" l x 6.26" d x 7.13" h
(593mm l x 159mm d x 181mm h) | | Mounting bolt pattern | 10" x 4.5" (254mm x 114.3mm) | | Installed weight | 69.0 LB (31.3 kg) | | Ship weight | 82.01 LB (37.1 kg) | | Switching method | 15' rubber handheld remote | | Switching mechanism | Heavy duty sealed contactor | | Fairlead | Aluminum hawse | | Color-coated wiring | Yes | | Performance 12VDC (Bottom layer on drum): | Line Pull | Motor | Line Speed | | LB | (kg) | AMPS | FPM | (m/m) | | 0 | 0 | 33 | 47.1 | (14.3) | | 4,000 | (1,814) | 200 | 11.0 | (3.4) | | 9,000 | (4082) | 350 | 6.4 | (2.0) | |
About Superwinch, Inc.
Superwinch products are the winches trusted by professionals and weekenders alike for everything from racing to recovery, boating to off-roading. With their sleek, compact construction, Superwinch products are designed for fast, easy installation - whether portable or permanent. Available in capacities ranging from 1,000 to 30,000 pounds, Superwinch has the right winch for your application. Limited Lifetime Warranty
Superwinch, Inc. warrants to the original buyer that the mechanical components of all genuine Superwinch winch models shall be free from defects in materials and workmanship from the date of purchase of new products for the lifetime of the winch and that the electrical components shall be free from defects in materials and workmanship for one year from the provable date of purchase, or otherwise specified time period. Any product that Superwinch determines to be defective will be repaired or replaced at Superwinch’s discretion without charge to buyer upon buyer’s compliance with disclosed procedures. |
|
